MINING DOOR – AUTOMATIC DOOR SYSTEMS

SCOPE OF WORK

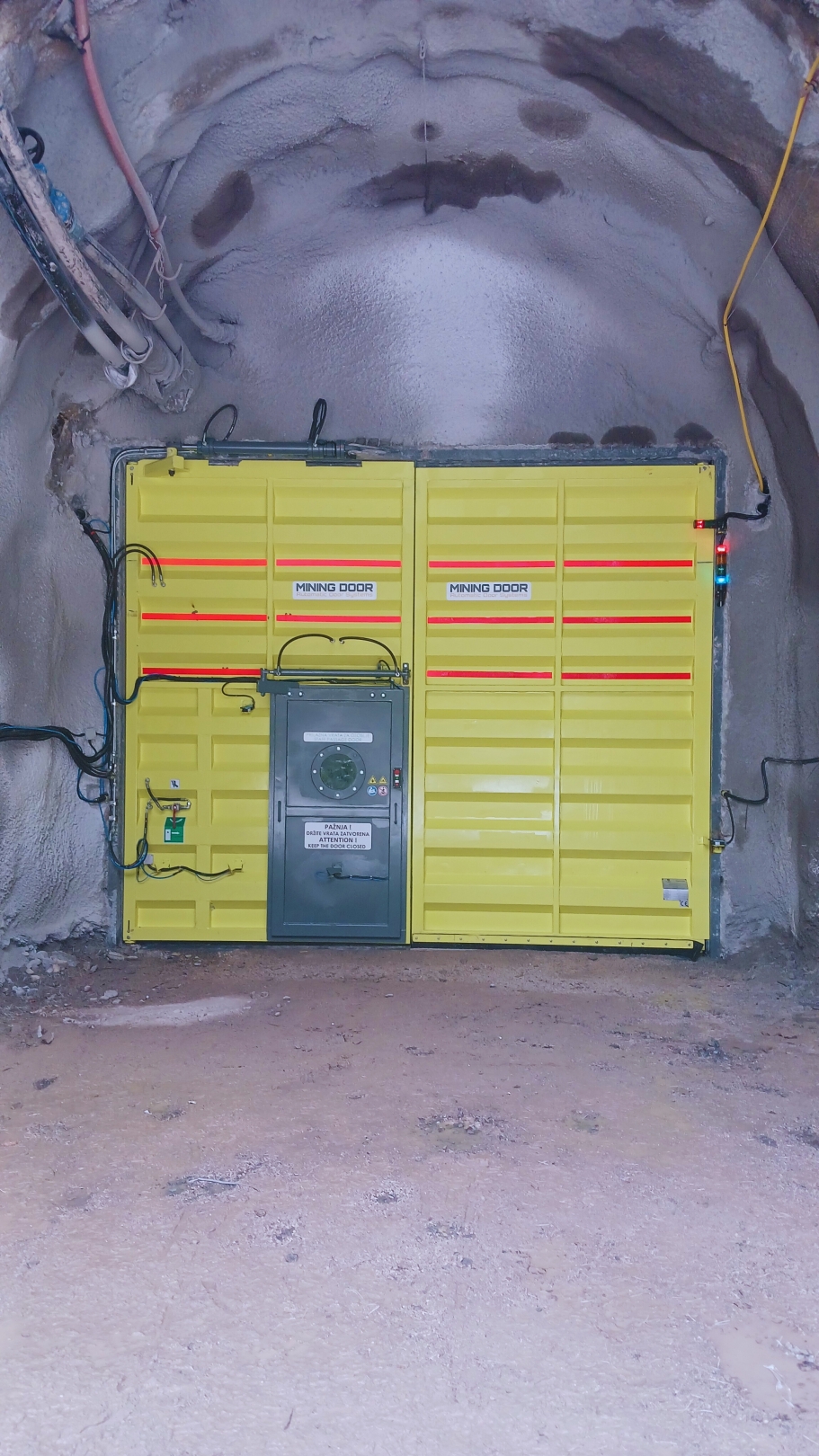

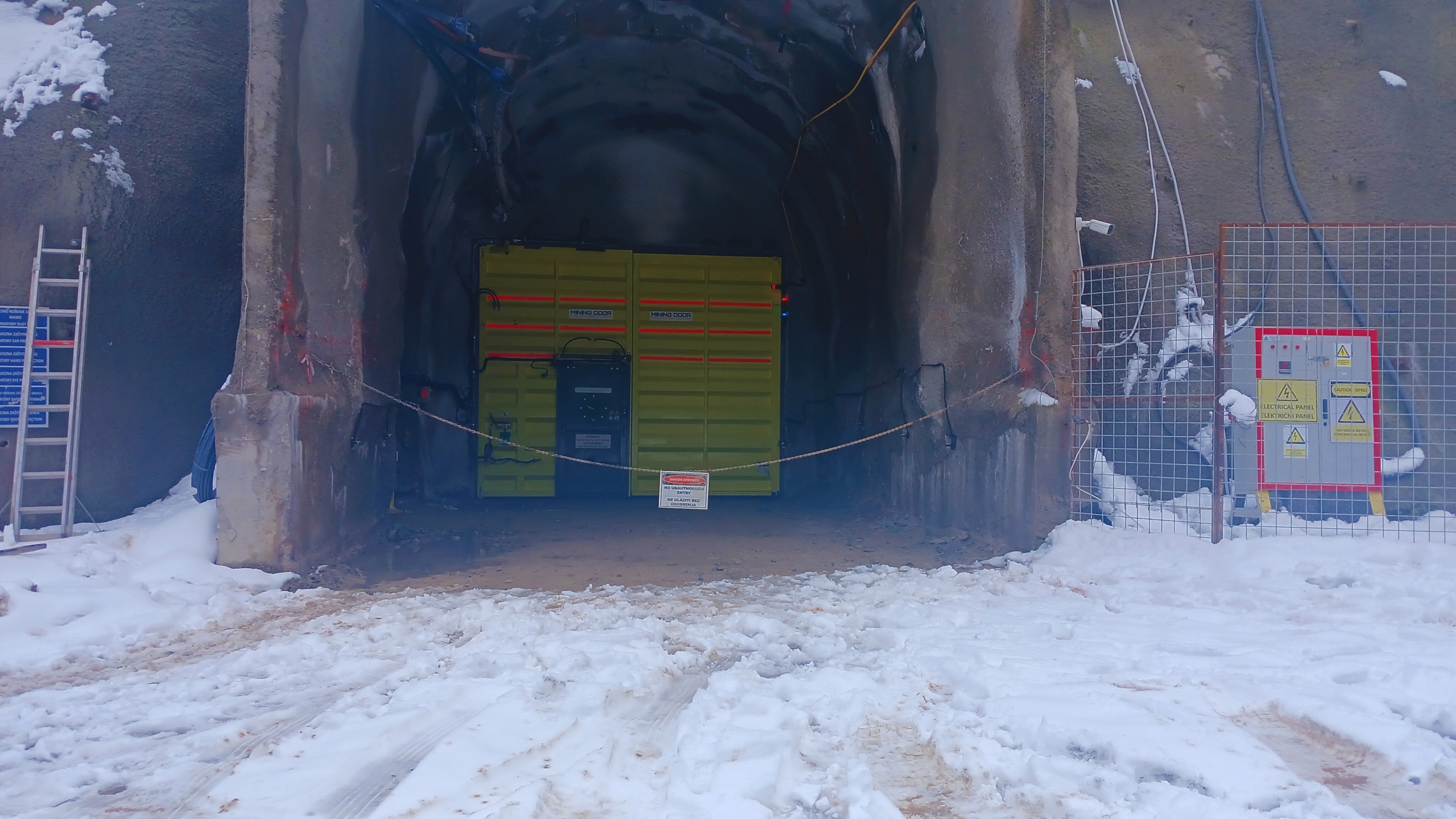

This project is the Mining Door project for the Vares/Rupice Mine of Adriatic Metals BH Operation.

As part of the Mining Door project, the design, analysis, manufacturing, installation, and electrical-automation software works for 2 sets of doors have been completed.

Technical Specifications

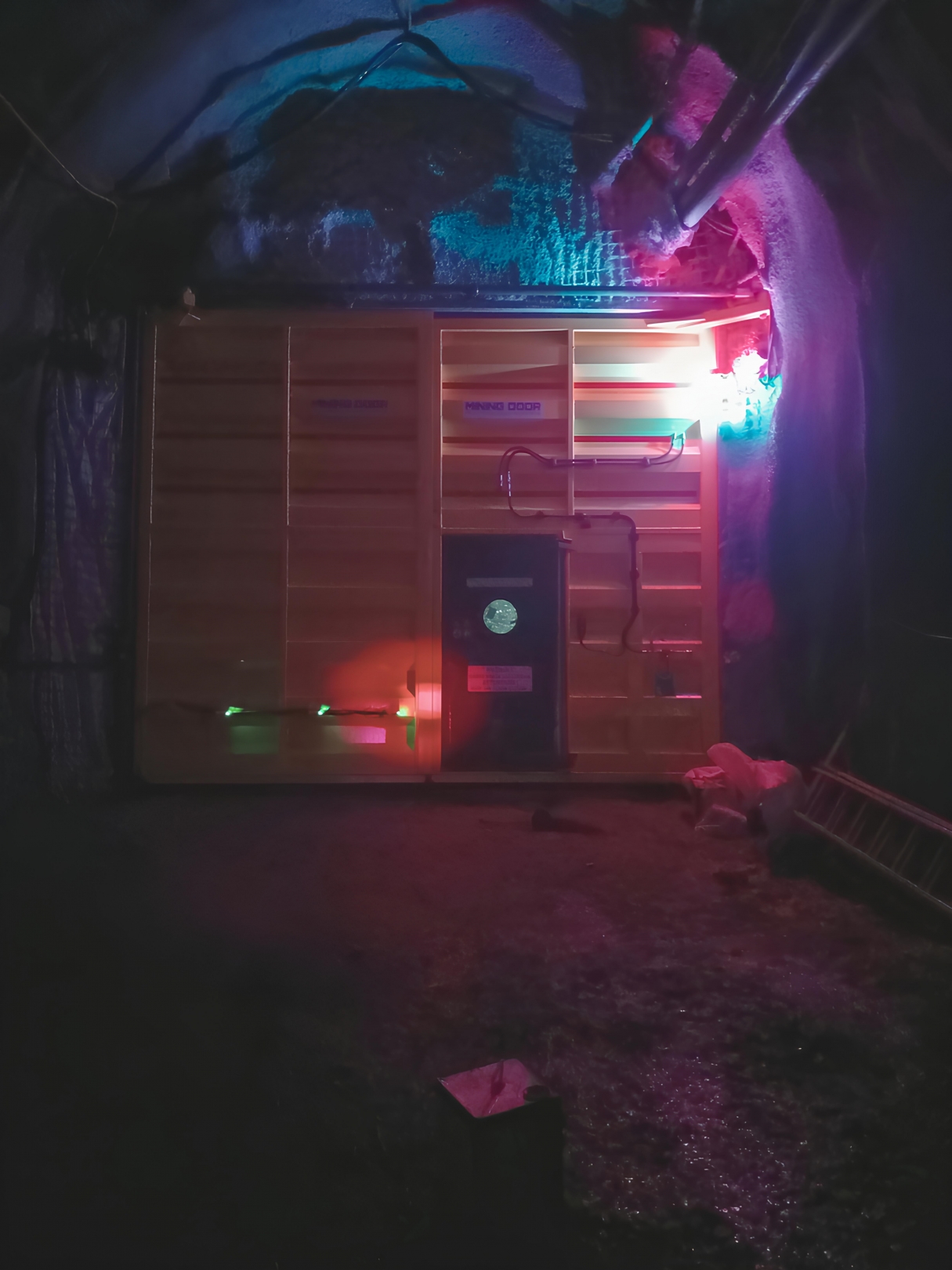

• Two Sets of Door Units Positioned Oppositely to Ensure Sealing

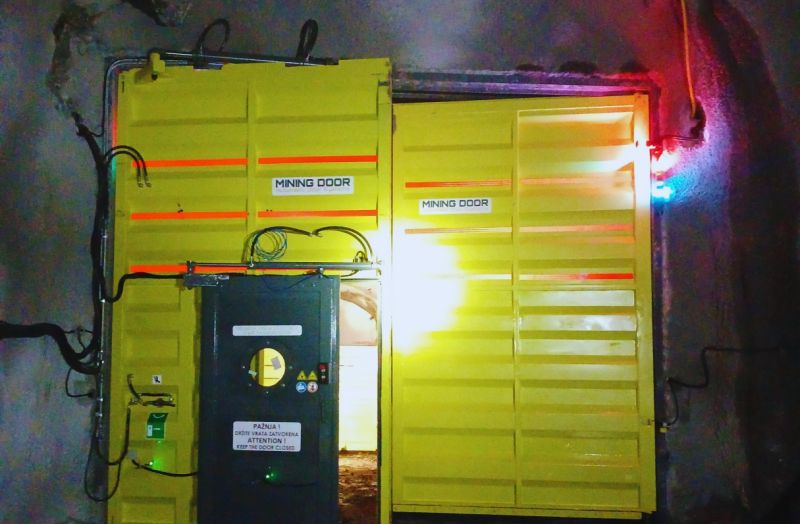

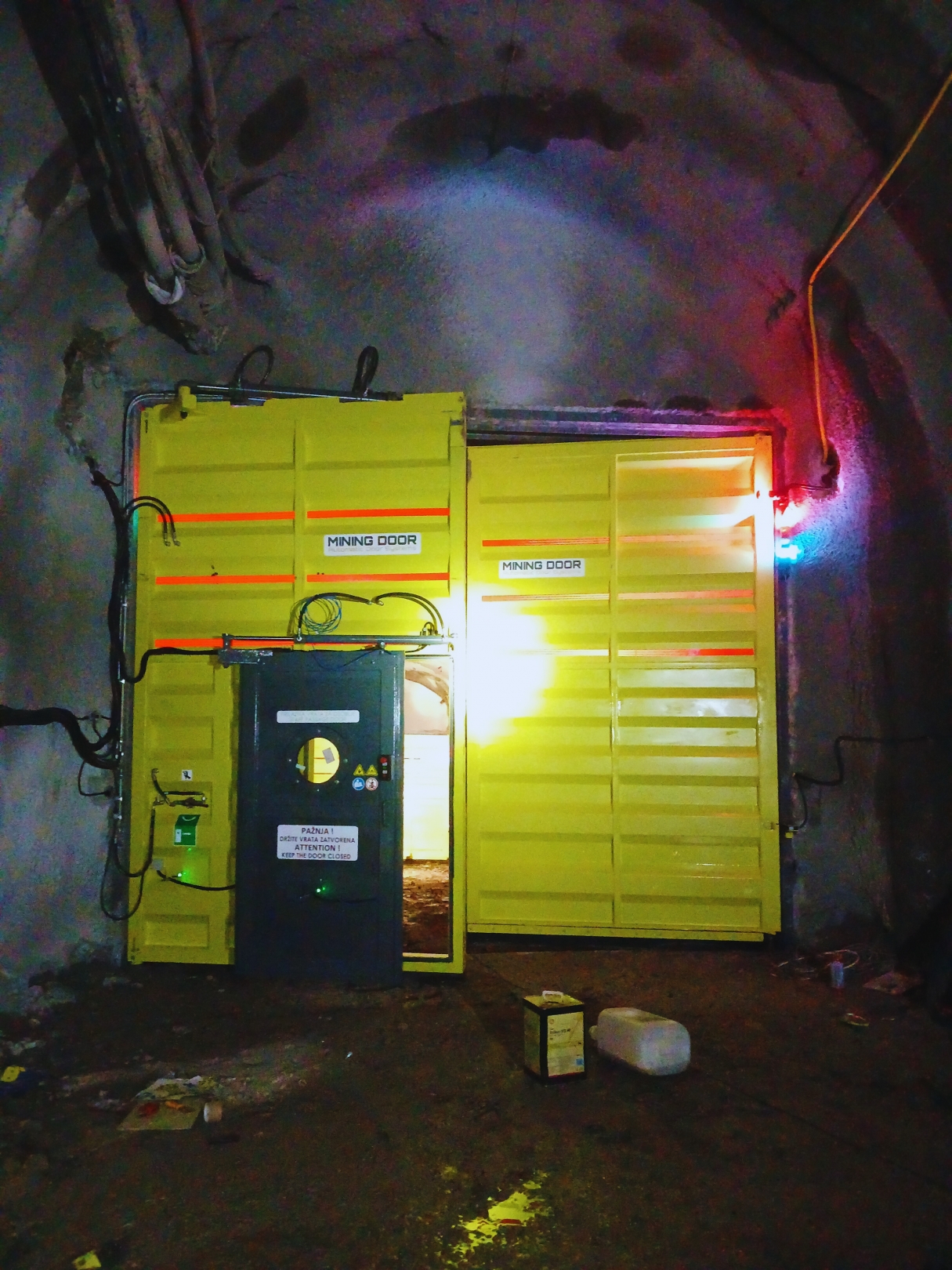

• Door Wings Opening 90° in Opposite Directions Simultaneously with a Single Piston
• Mechanical Design Capable of Absorbing High-Pressure Airflow
• Airflow Control Inside the Gallery
• Automatic Vehicle Detection

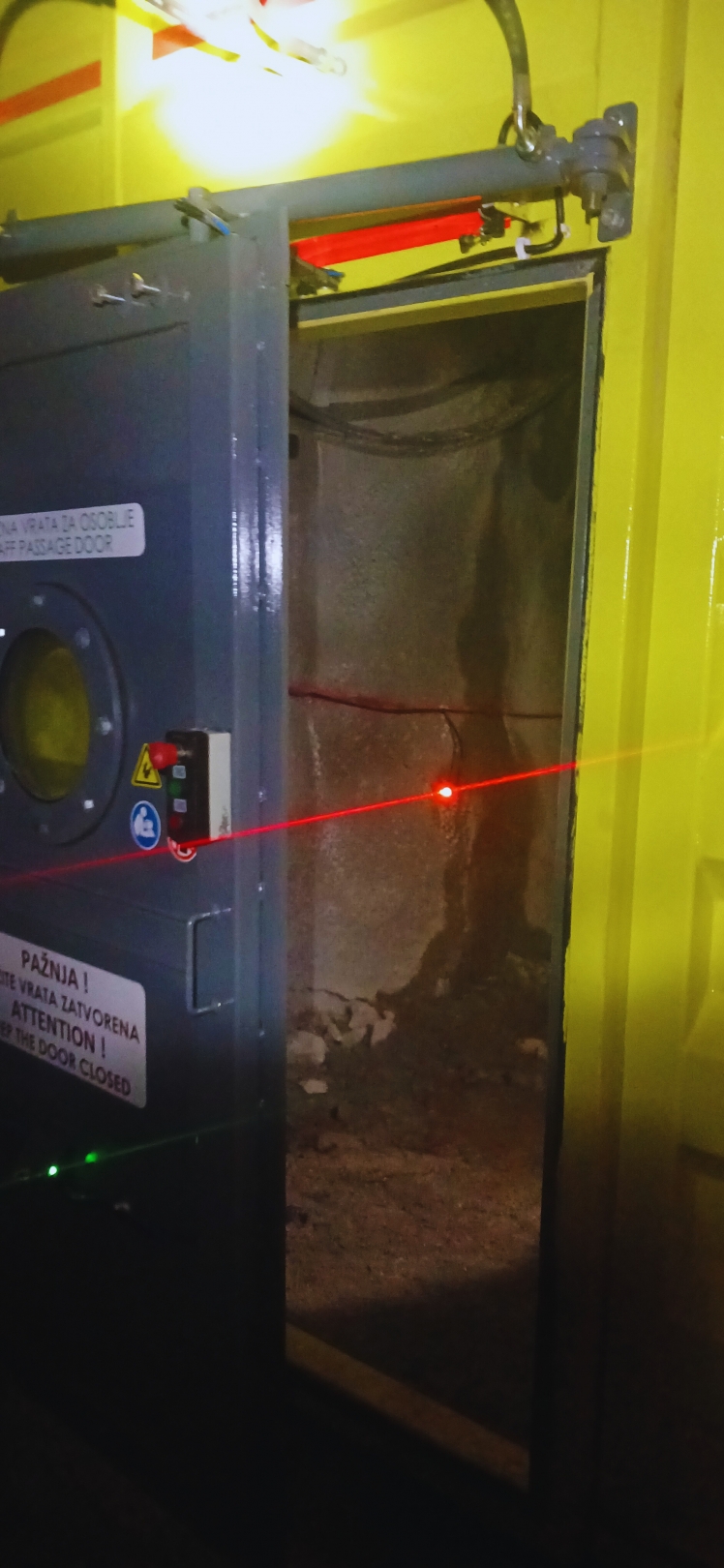

• Personnel Detection and Safety Systems
• Monitoring and Intervention Infrastructure via Control Panel and SCADA System
• HMI Control Screen on the Control Panel
• Vehicle and Door Position Tracking via HMI Panel and SCADA System
• PLC System, PLC Modules, and Communication Module
• Manual Control in Emergency Situations
• Integration of Uninterruptible Power Supply (UPS) to the System
• Visual and Audible Warning Systems Based on Operating Mode

Mining Door is supported by Çolakoğlu Makina in all kinds of technical issue.
